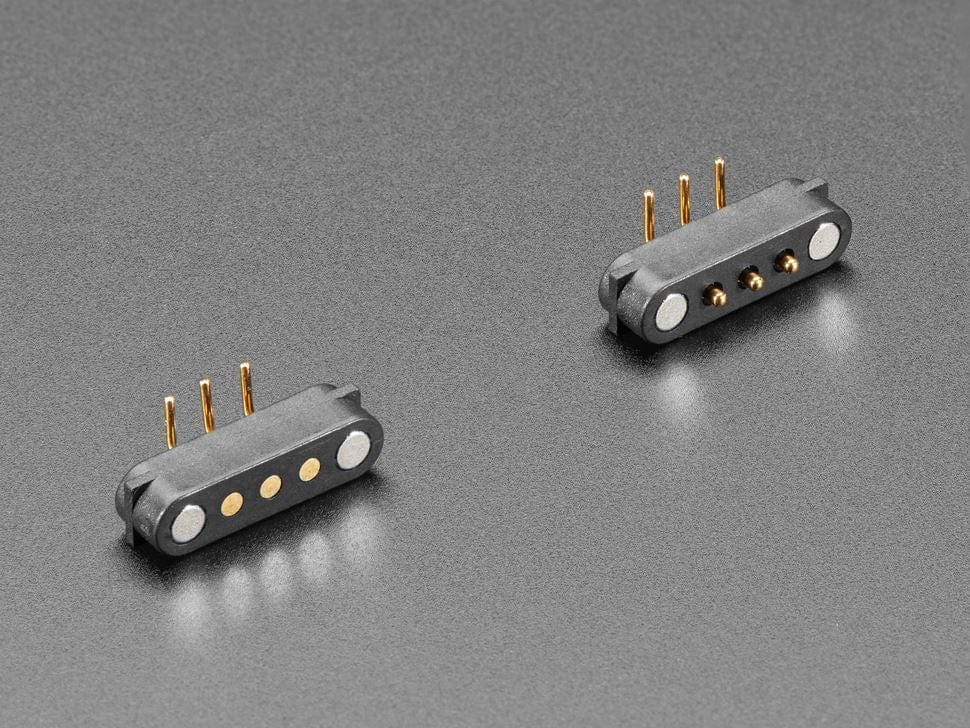

In the realm of electronic design and testing, pogo pins play a vital role as reliable, spring-loaded connectors that facilitate temporary electrical connections. Whether you are Magnetic Connectors a prototype, designing a testing jig, or creating an interface for programming or battery charging, selecting the right pogo pin is essential for ensuring connectivity, durability, and overall project success. Given the variety of pogo pins available, with differences in size, materials, electrical ratings, and mechanical features, making an informed choice requires understanding key factors that influence their performance in your specific application. This guide provides a comprehensive overview of how to choose the right pogo pin for your next electronic project.
Understanding What Pogo Pins Are
Pogo pins are spring-loaded contact pins designed to maintain firm electrical contact with a mating surface while allowing some degree of movement or misalignment. The pin typically consists of a barrel, spring, and plunger or tip. When compressed, the spring inside the barrel pushes the plunger outward, ensuring continuous contact pressure.
Pogo pins are widely used in test fixtures, burn-in boards, programming interfaces, and as connectors in compact or temporary setups. Their design allows for quick, reliable connections without soldering, making them ideal for repeated mating cycles during product development and testing.
Determine the Electrical Requirements
Before selecting a pogo pin, carefully assess your project’s electrical requirements. This includes current rating, voltage rating, contact resistance, and frequency response.
Current rating refers to the maximum continuous current the pin can safely conduct without overheating or degrading. For low-power signal connections, pins with current ratings of a few hundred milliamps may suffice, while power applications require pins rated for several amps or more.
Voltage rating is equally important, especially in circuits where high voltages are present. Ensure the pogo pin’s insulation and materials support the required voltage levels to prevent arcing or breakdown.
Contact resistance affects signal integrity. Lower resistance ensures minimal voltage drop and better signal transmission, which is critical for sensitive or high-frequency signals. Choose pins with gold-plated contacts or other low-resistance finishes to optimize performance.
For high-frequency or RF applications, consider the pin’s impedance characteristics and shielding to minimize signal loss and interference.
Consider Mechanical Specifications
Mechanical parameters such as pin length, stroke (travel distance), spring force, and diameter significantly influence the suitability of a pogo pin for your application.
The pin length must accommodate the distance between mating surfaces, accounting for any variations in height or alignment. A longer pin stroke allows for greater tolerance but may reduce durability or stability.
Spring force determines how firmly the pin presses against the contact pad. Stronger springs ensure better connectivity but require more force to compress, which can stress delicate components or increase insertion force in connectors. Weaker springs are gentler but may compromise reliable contact under vibration or movement.
Pin diameter affects the contact area and current-carrying capability. Larger diameters typically handle higher currents and provide more mechanical strength but require larger contact pads.
Selecting the right combination of these mechanical factors helps achieve reliable, consistent connections without damaging components or compromising ease of use.
Choose the Appropriate Tip Style
Pogo pins come with various tip designs tailored for different contact surfaces and applications. Common tip styles include flat, dome, sharp, needle, and concave.
Flat tips provide broad contact area and are ideal for flat pads, such as PCB test points or battery contacts.
Dome tips offer a slightly curved surface that improves contact on uneven or slightly oxidized surfaces, enhancing reliability.
Sharp or needle tips penetrate surface oxides and contaminants, ensuring a low-resistance connection, particularly useful in testing environments where oxidation is common.
Concave tips improve wiping action during compression, helping to clean the mating surface and maintain good contact over repeated cycles.
Selecting the appropriate tip style depends on the surface you will be contacting, the frequency of mating cycles, and the environmental conditions.
Material and Plating Options
Materials used in pogo pins impact durability, conductivity, corrosion resistance, and cost. Most pogo pins are made from beryllium copper or phosphor bronze due to their excellent electrical and mechanical properties.
The plating on the contact surfaces further influences performance. Gold plating is the most common choice because it offers low contact resistance, excellent corrosion resistance, and good wear properties, albeit at a higher cost.
Nickel plating is a cost-effective alternative but has higher contact resistance and is more prone to oxidation.
Some applications may require specialized coatings, such as platinum or rhodium, for extreme corrosion resistance or specific electrical requirements.
Consider the environmental conditions your project will face—humidity, temperature extremes, or chemical exposure—to select materials and plating that ensure long-term reliability.
Evaluate Durability and Cycle Life
Durability is a critical consideration, especially for projects involving frequent connections and disconnections. The cycle life rating of a pogo pin indicates how many times it can be compressed and released before failure or significant performance degradation occurs.
High-quality pogo pins typically offer tens of thousands to hundreds of thousands of cycles, depending on materials and design. For production testing or repeated programming tasks, prioritize pins with a high cycle life to minimize maintenance and replacement costs.
The choice of spring material and design also affects durability. Stainless steel springs resist corrosion, while precision springs maintain consistent force over many cycles.
Assess Environmental and Operating Conditions
Your operating environment plays a crucial role in pogo pin selection. Temperature ranges, exposure to moisture, dust, vibration, and chemical agents can all impact performance.
For high-temperature applications, ensure the pogo pin materials and lubricants can withstand the heat without losing elasticity or conductivity.
If the application involves exposure to moisture or corrosive atmospheres, select pins with corrosion-resistant plating and seals if necessary.
Vibration resistance is essential in automotive or aerospace projects, where pins must maintain contact under dynamic conditions. Look for pins designed with anti-vibration features or stronger spring forces.
Consider Mounting and Integration
How the pogo pins will be mounted and integrated into your design also influences the choice. Pogo pins come in various mounting styles, including through-hole, surface-mount, press-fit, and pogo pin arrays.
Through-hole pins offer robust mechanical stability but may increase assembly complexity.
Surface-mount pins are compatible with automated PCB assembly but can have limited mechanical strength.
Press-fit or spring-loaded arrays enable multiple connections simultaneously and are useful in test fixtures or docking stations.
Match the pogo pin mounting style to your manufacturing capabilities and design constraints to ensure seamless integration.
Factor in Size and Pitch
The physical size and pitch (distance between pins) are critical for fitting pogo pins into your design. Compact projects with limited space require small-diameter pins and tight pitch arrays.
However, reducing size and pitch often compromises current capacity and mechanical robustness, so balance miniaturization with performance requirements.
For high-density applications like smartphone testing, micro pogo pins with pitches as small as 0.5 mm are common. For larger power applications, bigger pins with wider spacing are preferred.
Ensure your design accommodates the pogo pin dimensions, including clearance for compression and access for maintenance.
Budget and Supplier Considerations
Cost is always a factor in component selection. High-performance pogo pins with premium materials and coatings command higher prices, but they often deliver better reliability and longevity.
Consider your project’s budget constraints and whether investing in quality pogo pins will reduce downtime and replacement costs over time.
Additionally, source pins from reputable suppliers who provide detailed specifications, quality certifications, and technical support. Reliable suppliers can assist with custom solutions and help troubleshoot issues.
Ordering samples or small batches for evaluation before full-scale procurement is a wise practice.
Test and Validate Your Selection
Before finalizing your choice, prototype with selected pogo pins to validate their performance under real-world conditions. Test for electrical continuity, contact resistance, mechanical fit, and durability.
Simulate operational stresses such as vibration, temperature cycling, and repeated mating cycles to identify potential failures.
Gathering feedback from hands-on testing helps refine your selection and avoid costly redesigns later.
Conclusion
Choosing the right pogo pin for your next electronic project involves balancing electrical, mechanical, environmental, and economic factors. By understanding your project’s specific needs—such as current and voltage requirements, mechanical tolerances, durability demands, and environmental challenges—you can select pogo pins that deliver reliable, long-lasting performance. Paying attention to tip style, materials, mounting methods, and size ensures seamless integration into your design. Thorough testing and working with reputable suppliers further enhance your chances of success. With careful consideration and informed choices, pogo pins can become dependable components that simplify connections and elevate the quality of your electronic projects.
